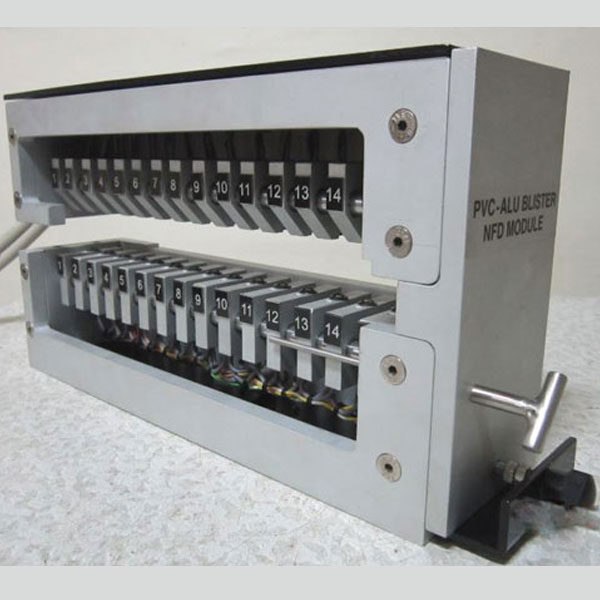

NFD - Blister Packing
System Overview
The No Fill Detection - NFD is designed to detect empty pocket in blister, featuring a compact and user-friendly design. The system is linked to blister packing machine & online rejects faulty blisters.
Blister NFD guarantees precision in blister product count, minimizing downtime and ensuring the highest product quality.
- Universal design for all products
- Best price to performance ratio
- Automated blister detection
- Easy cleaning & accessibility
- Flexible Design : System can be customised as per blister machine
- Forming, sealing, dry ink & foil joint rejection available
System Highlights
100% Empty Detetcion

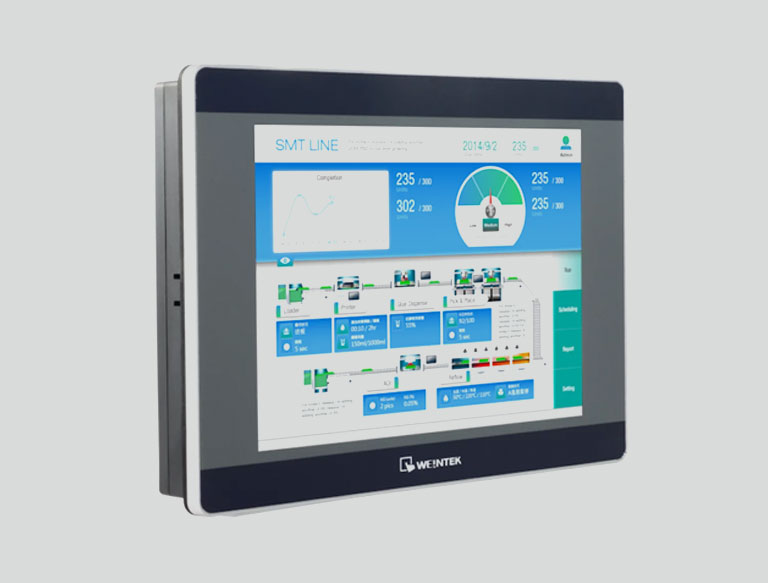

Operator Friendly Interface

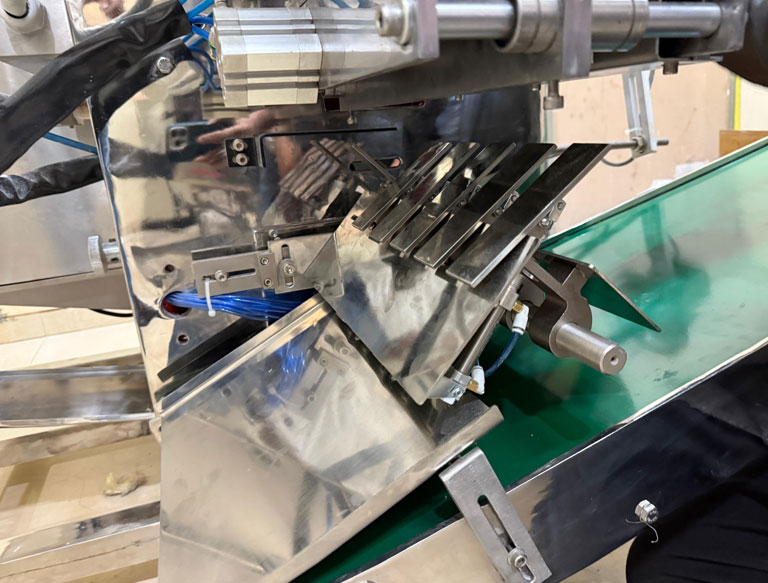

Online Blister Rejection
| Machine Speed | Blister/Min | 300 |
| Power Absorption | KW | 1.5 |
| Air Consumption | CFM | 2 |
| Air Pressure | Bar | 5 |
| Net Weight | Kg | 30 |

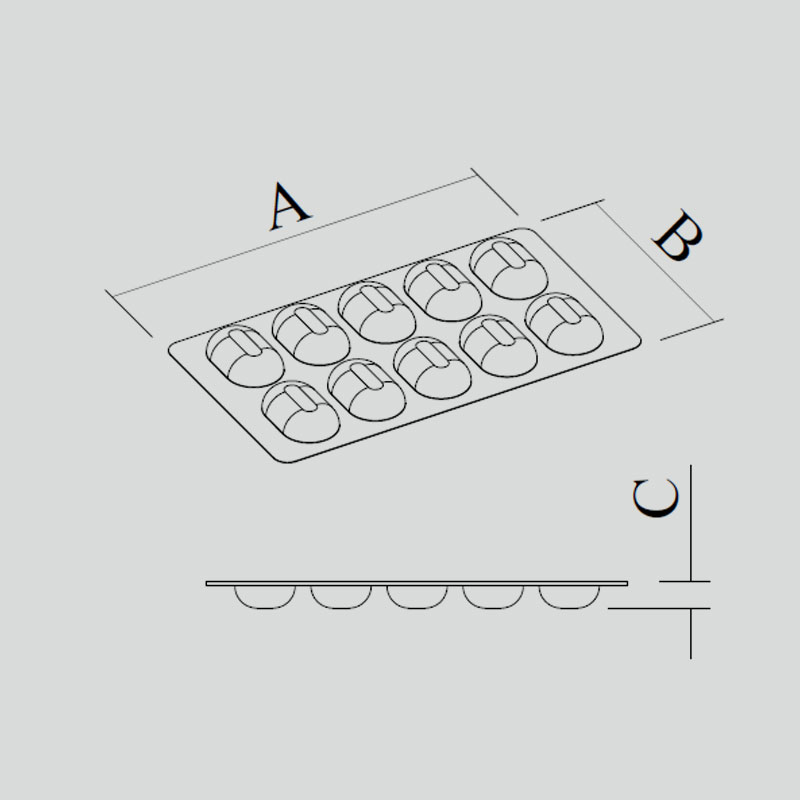

| Size Range | ||
| Blister | Min. | Max. |
|---|---|---|
| Length - A | 65 | 230 |
| Width - B | 40 | 125 |
| Thickness - C | 3 | 8 |
|
