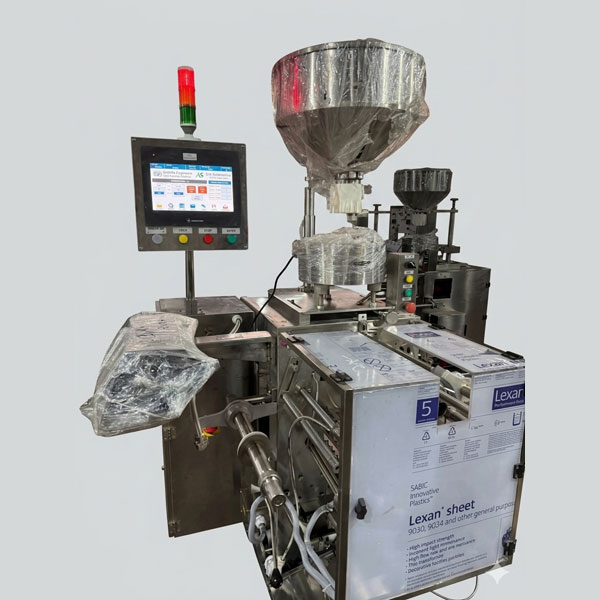

Strip Machine Combine Control

Overview

The Strip Machine Combine Control is designed to control strip machine + NFD, featuring a compact and user-friendly design.

The system can be linked to any strip packing machine. combine control panel gives operator of all data related to strip packing with NFD in one single HMI.

Strip NFD all features included in this system
Checks precence of product in every cavity
Flexible Design : System can be customised as per strip machine
Gives single point access to operator
Production report generation
Priviledged user access
Report generation
Individual strip rejection

Enquiry Now

Download Brochure

System Highlights

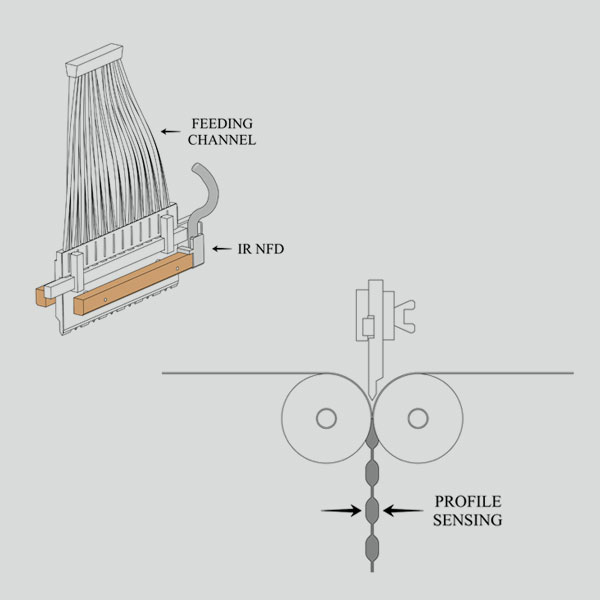

IR Sensing NFD
- Product is sensed while dropping from feeding chanel to strip pocket
- Sensing is done before sealing
- Separate IR changepart for every feeding chanel
Mechanical Sensing NFD
- Product is sensed via profile sensing by mechanical rollers which rest on strip surface.
- Sensing is done after sealing.
- Universal design so NO change Part is required
- Mainly suitable for tablets

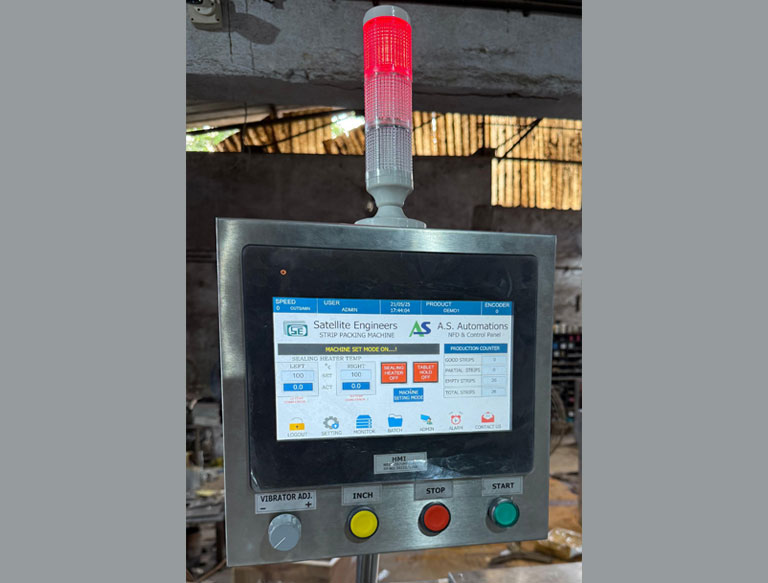

Machine HMI
- Large 10" HMI for machine setting with product recepie
Speed Control Via VFD
- Accurate Speed Control
Accurate Temperatue Control
- Separate temperatue controllers for both Sealing rollers
- All heater related alarms can be generated

Compact & Ergonomic System features a compact footprint for easy installation in limited spaces, while its ergonomic design simplifies loading and maintenance operations. Flexible Design System can be customised for any strip packing machine

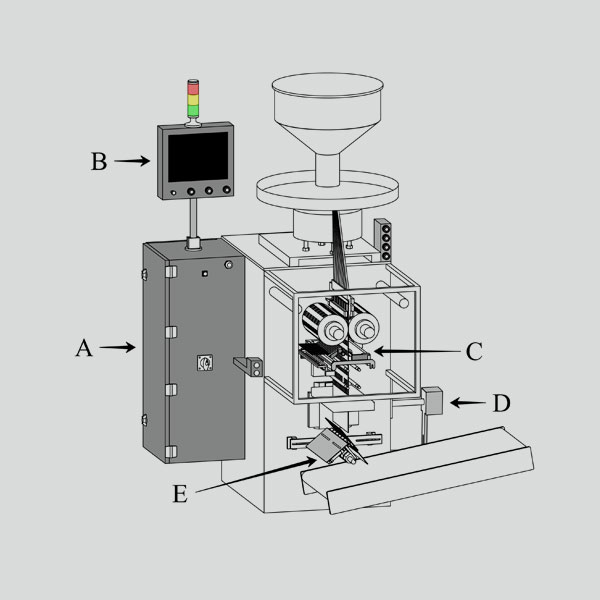

System Overview A - Combine Control Panel B- HMI With Control Switches C- Mechanical Sensing NFD D- Encoder E- Rejection Assembly

Foil Joint Detection

Joints in foil rolls are detected.

After detetion product is not filled in foil portion with joint.

Both LHS & RHS foil joints are detected.

Foil End Detection

After foil ends or there is cut in foil during packing system will detect.

Rejection Verification

Online verification of every rejected strip.

Pin-Hole Detection Link Up

PinHole device can be linked to NFD.

Product will not be filled in patch of foil having pin hole
